Camera

Image Sensor

1/2.8" CMOS

Pixel

5 MP

Max. Resolution

2560 (H) × 1920(V)

ROM

128 MB

RAM

128 MB

Electronic Shutter Speed

1 s–1/100,000 s

Scanning System

Progressive

Min. Illumination

0.05 lux@F1.6 (Color, 30 IRE);

0.005 lux@F1.6 (B/W, 30 IRE);
0 lux (Illuminator on)

Illumination Distance

30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR);

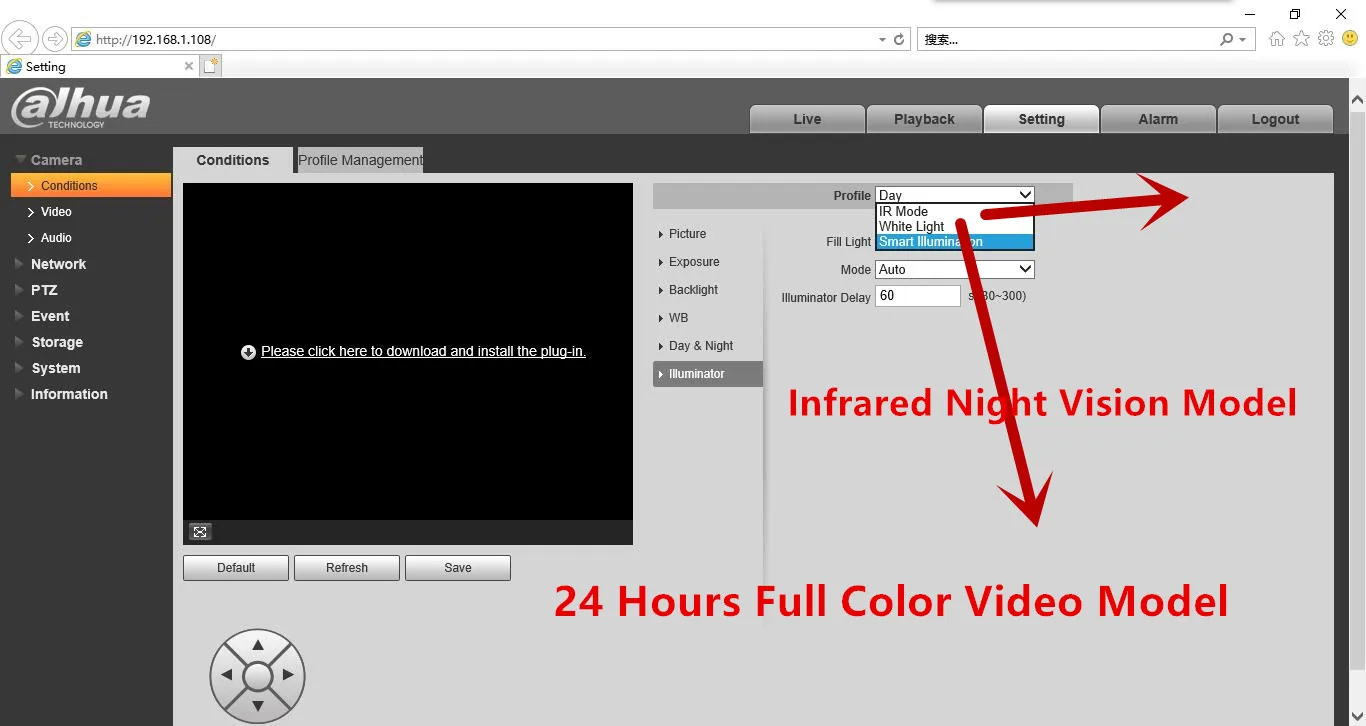

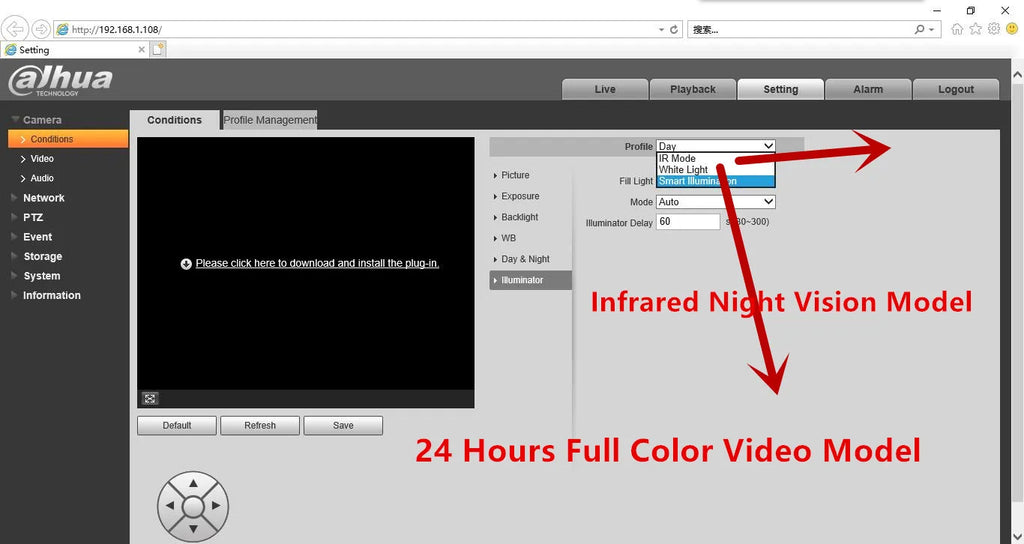

Illuminator On/Off Control

Manual; auto; off

Illuminator Number

2 (IR light); 2 (warm light)

Lens

Focal Length

4.0 mm

Max. Aperture

F1.6

Field of View

H: 80.4°; V: 58.1°; D: 104.8°

Close Focus Distance

0.3 m (0.98 ft)

Iris Control

Fixed

DORI Distance

Detect

Observe

Recognize

Identify

77.4 m (253.94 ft)

31.0 m (101.71 ft)

15.5 m

(50.85 ft)

7.74 m

(25.39 ft)

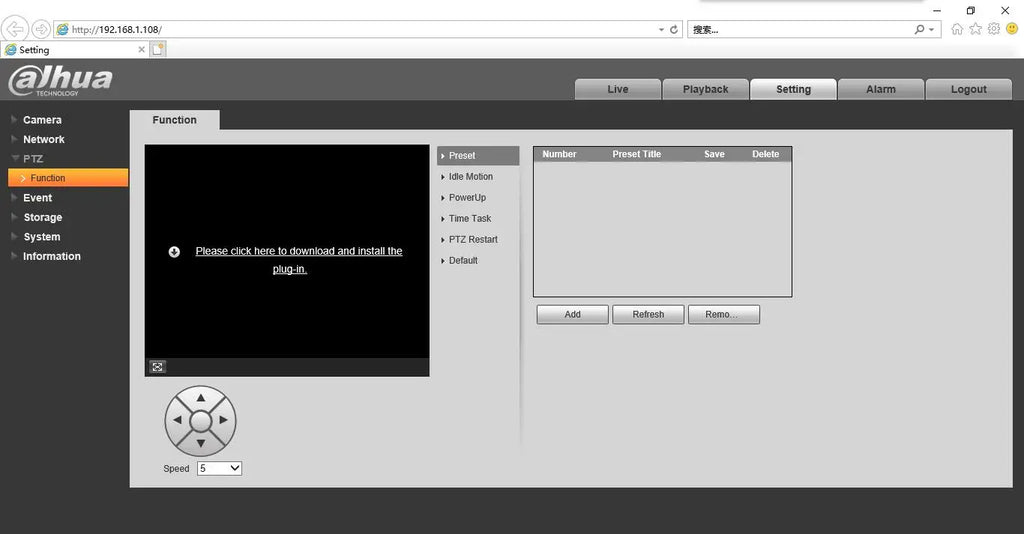

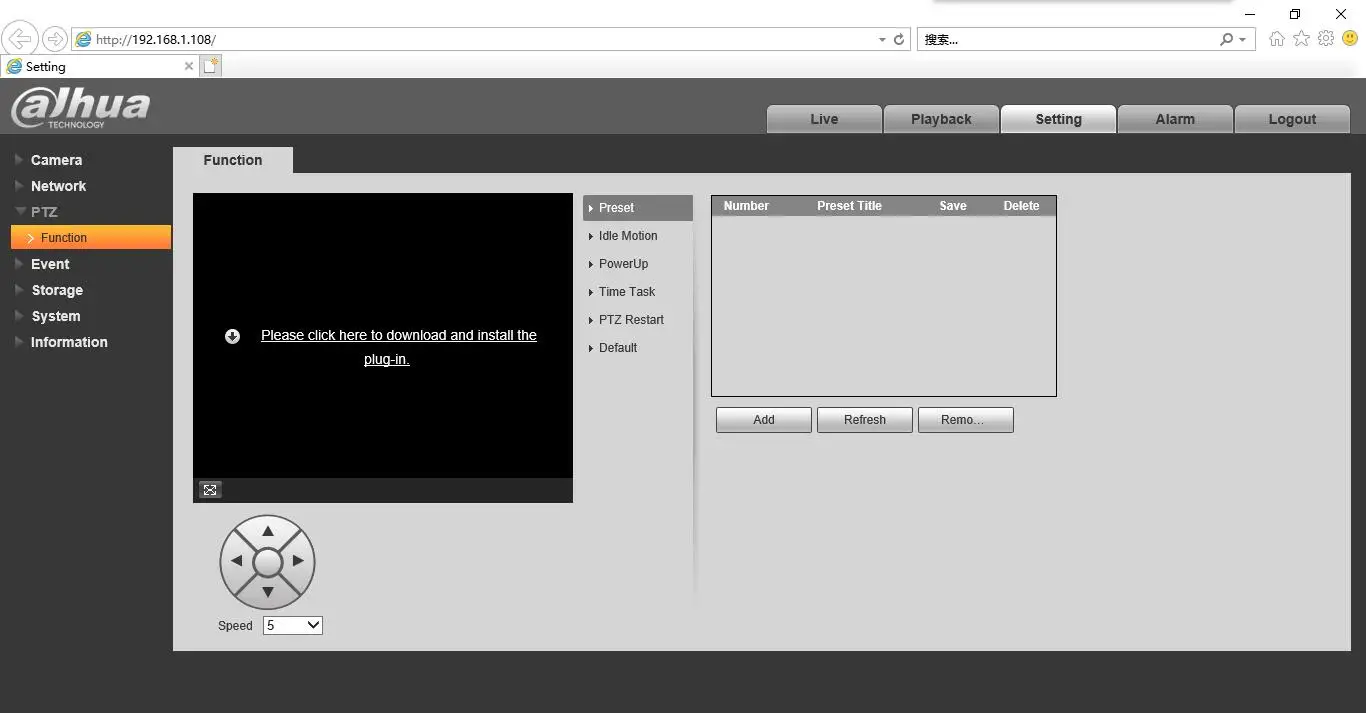

PTZ

Pan/Tilt Range

Pan: 0° to 345°;
Tilt: 0° to +80°

Manual Control Speed

Pan: 0.1°–74°/s;
Tilt: 0.1°–36.4°/s

Preset Speed

Pan: 0.1°–62°/s;
Tilt: 0.1°–36.3°/s

Preset

300

Power-off Memory

Yes

Idle Motion

Preset

Smart Event

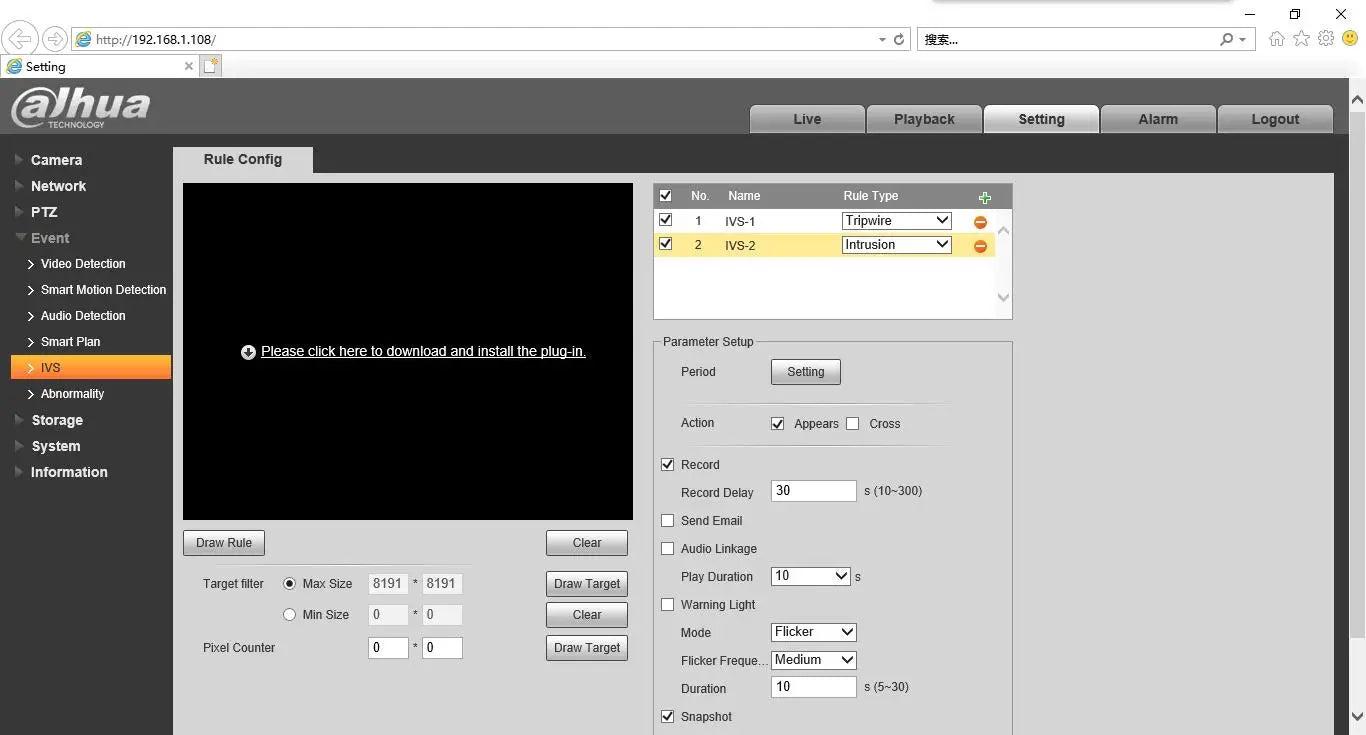

IVS

Tripwire; intrusion

Human Detection

Yes

Intelligence

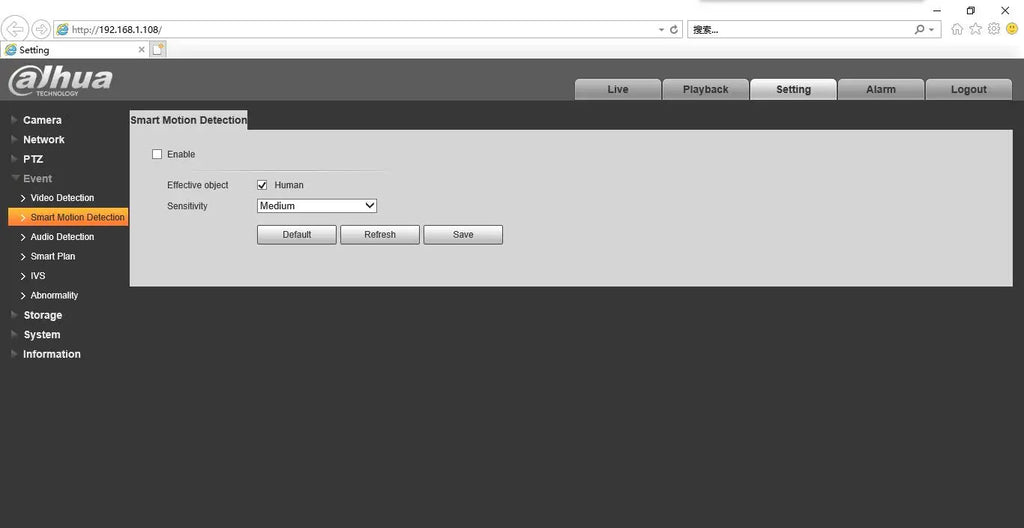

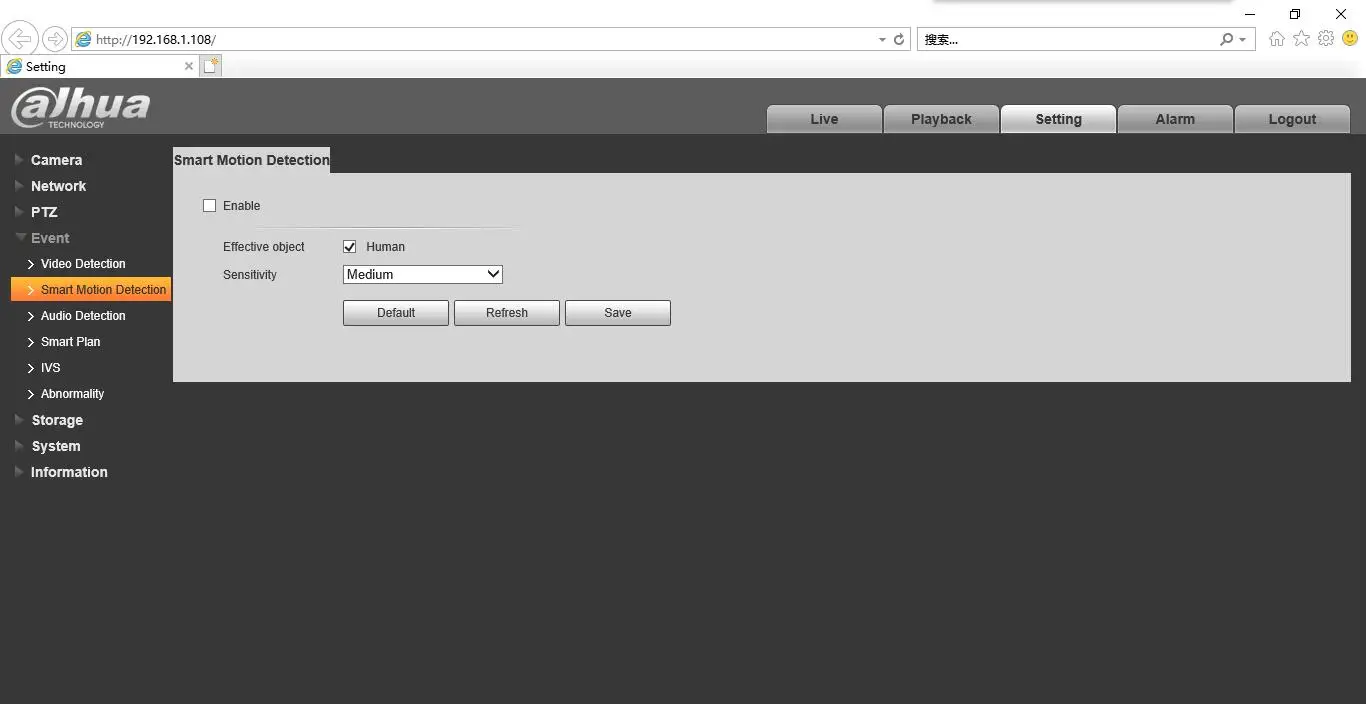

SMD

SMD3.0

Active Deterrence

Light Warning

Warm light warning;
Flash duration: 5 s–30 s;
Flash frequency: high, medium, low

Sound Warning

Offers 1 sound alarm and 10 custom sound alarms can be imported;
Sound can be set from 0%–100%;
Play times can be set from 1-10.

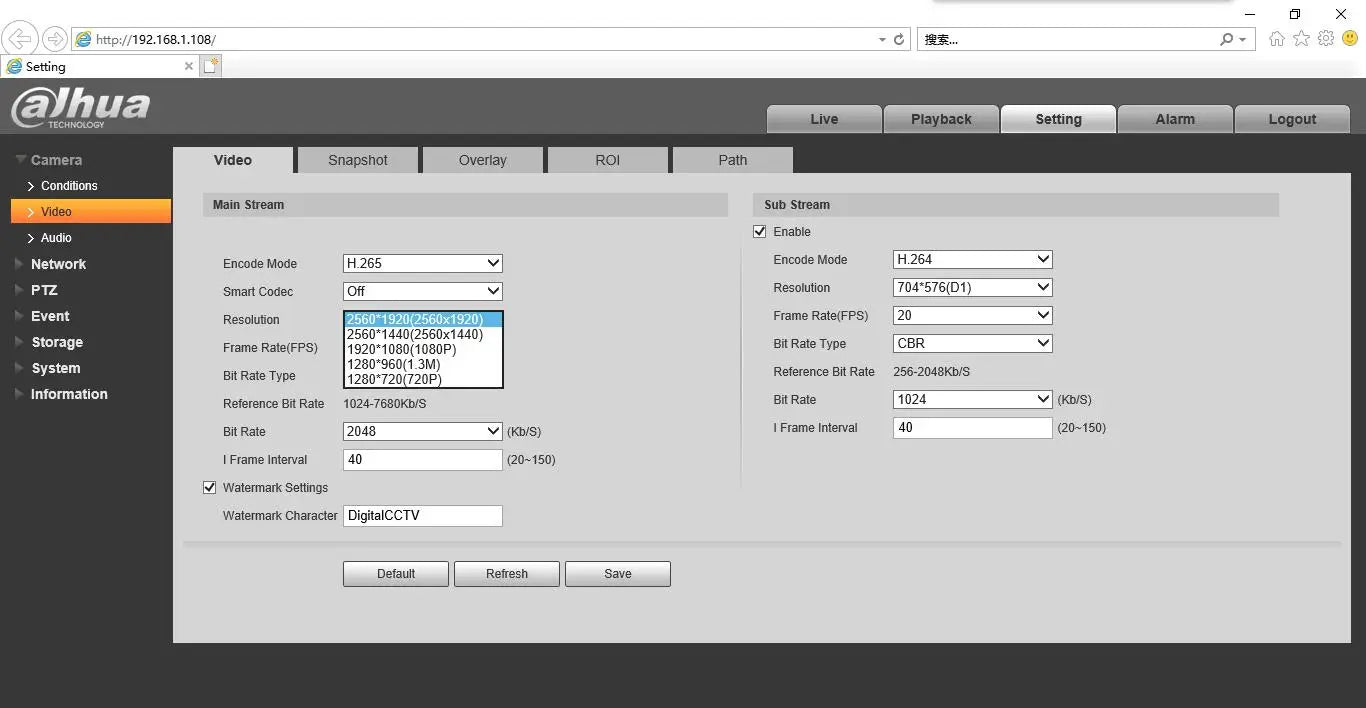

Video

Video Compression

H.264H;H.264B;Smart H.265+;H.265;Smart H.264+;H.264M;MJPEG(Sub Stream 1)

Streaming Capability

2 streams

Resolution

5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 104 kbps-8,192 kbps
H265: 41 kbps-8,192 kbps

Day/Night

Auto (ICR); Color/B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Electronic

Image Rotation

180°

S/N Ratio

≥55 dB

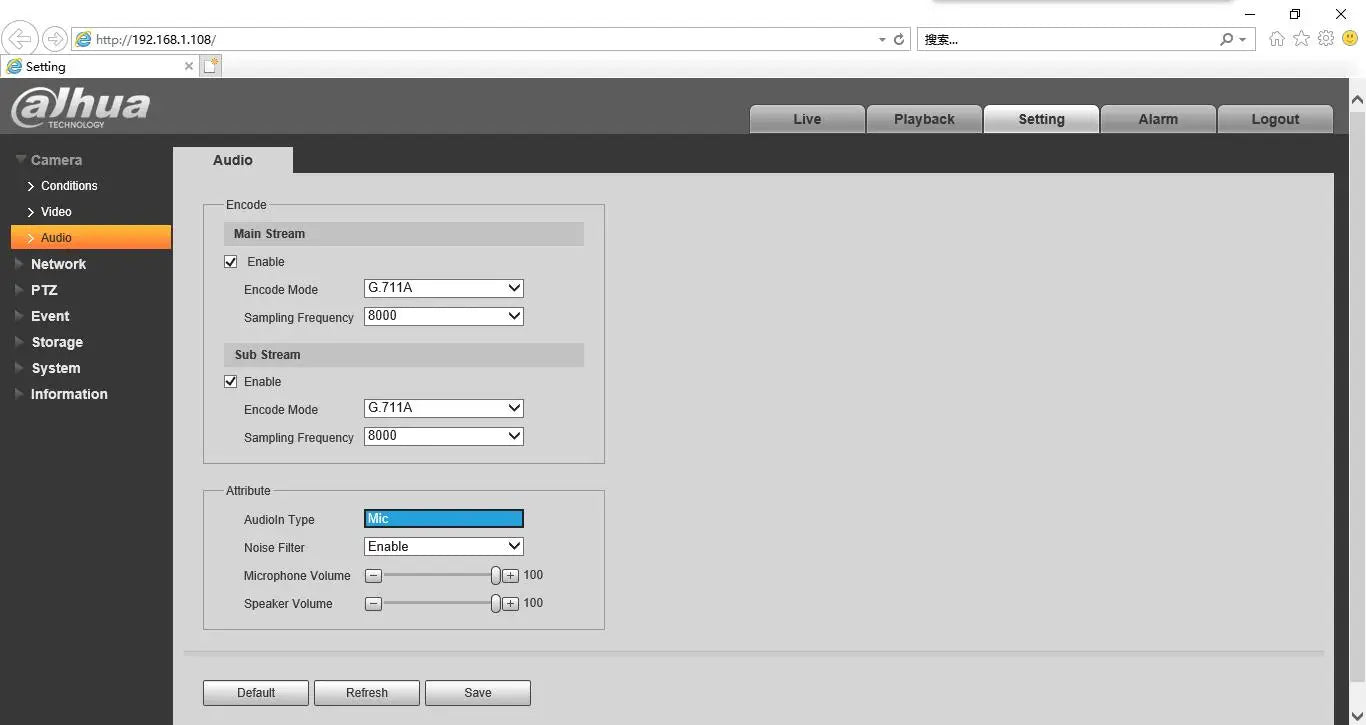

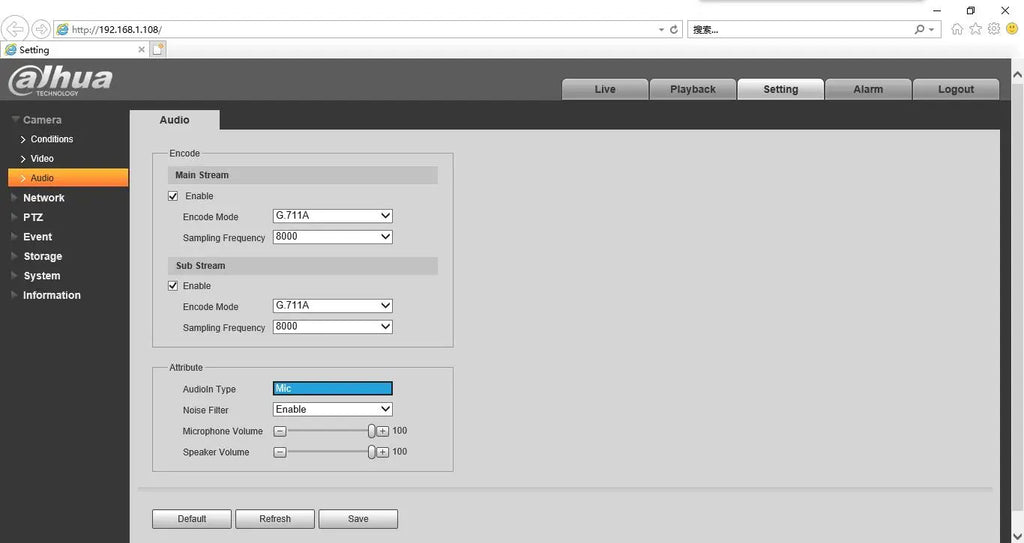

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; AAC

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

UDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SSL;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP

Interoperability

RTMP;CGI;SDK;ONVIF (Profile S & Profile T);P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (256 GB); FTP

Browser

IE: IE 7 and later versions; Chrome; Firefox; Safari

Management Software

Player;Smart Player ;DMSS;ConfigTool;NVR;Smart PSS

Mobile Client

iOS;Android

Certification

Certifications

CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-
3-2/EN55024/EN55035/EN62368-1
FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

Port

Audio Input

1 channel (built-in mic)

Audio Output

1 channel (built-in speaker)

Alarm Linkage

Capture; preset; recording; audio; sending email

Alarm Event

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

12 VDC/1.5 A ± 10% PoE (802.3af)

Power Consumption

Basic: 3.5 W;
Max: 9 W (illuminator)

Environment

Operating Temperature

–30 °C to +55 °C (–22 °F to +131 °F)

Operating Humidity

≤95%

Protection

Waterproof and Dustproof;TVS 2000 V lightning proof; surge protection; voltage transient protection

Structure

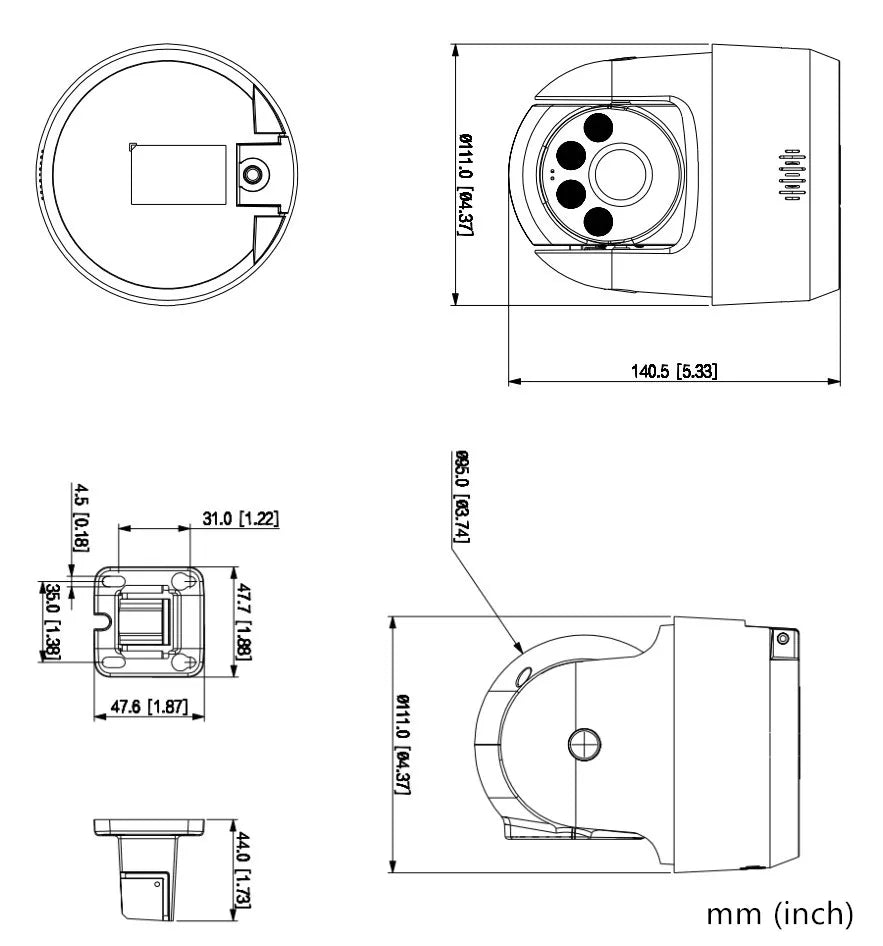

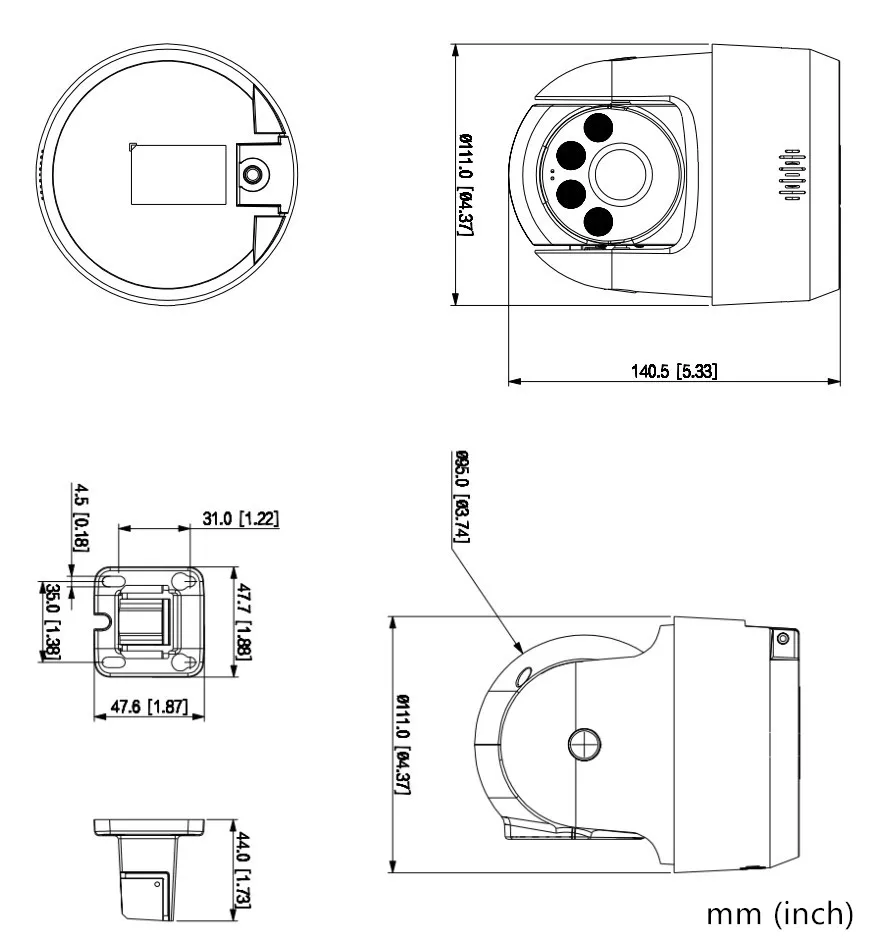

Product Dimensions

140.5 mm × Φ111.0 mm (5.53" × Φ4.37")

Net Weight

0.5 kg (1.10 lb)

Gross Weight

1 kg (2.20 lb)
