ESP32 3.5 inch Capacitive TouchScreen LCD Display ST7796 FT6336 320x480 For Arduino / Raspberry Pi / Pico
ESP32 3.5 inch Capacitive TouchScreen LCD Display ST7796 FT6336 320x480 For Arduino / Raspberry Pi / Pico
SPECIFICATIONS
Accessory Type: LCD Screen
Battery Included: No
Brand Name: spotpear
Choice: yes
Compatible With: LCD
High-concerned chemical: None
Origin: Mainland China
semi_Choice: yes
【Note】
[] Do not include ESP32 LCD Driver Board

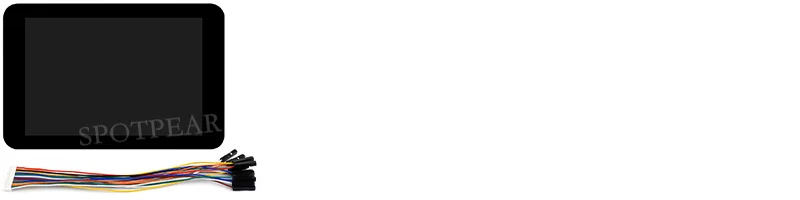

3.5inch Capacitive Touch LCD Module
Embedded ST7796S Driver And FT6336U Capacitive Touch Control Chip
Comes with examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino
320×480 resolution, 262K colors, clear and colorful displaying effect
High touch screen transmittance, fast response and long lifetime
Embedded with ST7796S driver chip and FT6336U capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins
Onboard TF card slot for storing more pictures, videos, music, etc.
Adapting 15PIN connector and 18PIN FPC slot for connecting the LCD module to the host board
Onboard voltage translator, compatible with 3.3V / 5V operating voltage
Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino)

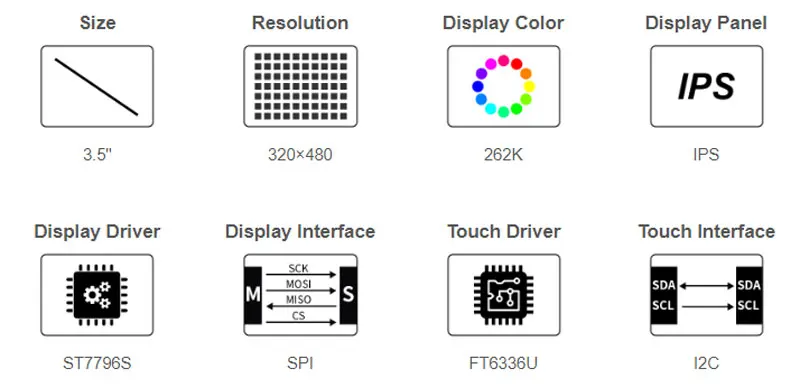

OPERATING VOLTAGE |
3.3V / 5V |
RESOLUTION |
320 × 480 pixels |
DISPLAY DRIVER |
ST7796S |
TOUCH DRIVER |
FT6336U |
DISPLAY INTERFACE |
4-wire SPI |
TOUCH INTERFACE |
I2C |
DISPLAY PANEL |
IPS |
TOUCH TYPE |
Capacitive |
PIXEL PITCH |
0.051 × 0.153 (mm) |
TOUCH POINTS |
Two-point touch |
DISPLAY SIZE |
48.96 × 73.44 (mm) |
MODULE SIZE |
61.00 × 92.44 (mm) |
3.5inch Touch Display
Embedded With ST7796S Driver Chip And FT6336U Capacitive Touch Control Chip

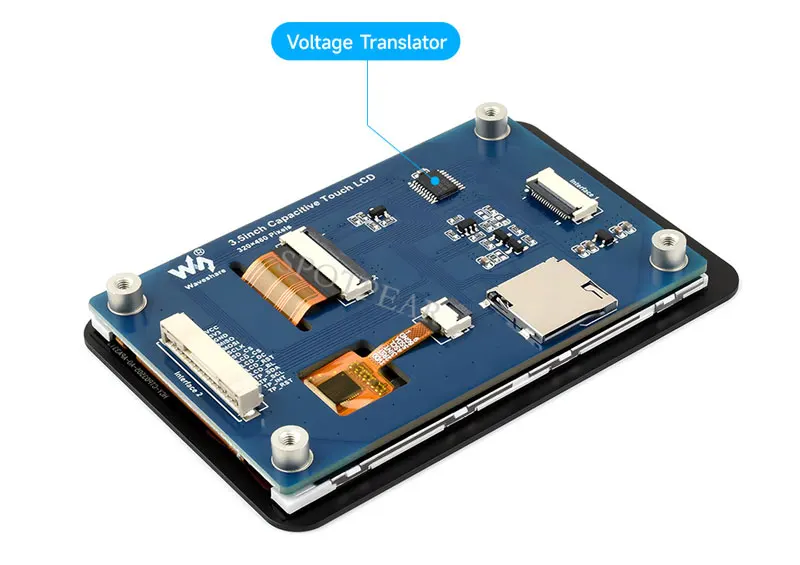

Onboard Voltage Translator
Compatible With 3.3V / 5V Operating Voltage
Onboard TF Card Slot
For Storing More Pictures Or Files

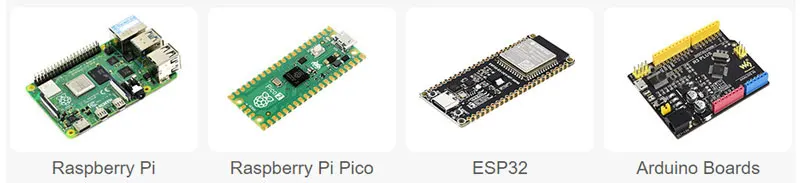

Suitable For Multiple Programming Platforms
Comes With Demos And Manuals For Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino
More Convenient For Development And Integration, With High Expansibility
SPI And I2C Control Interfaces
Options For 15PIN Connector Or 18PIN FPC Slot For Connecting The LCD To The Host Board

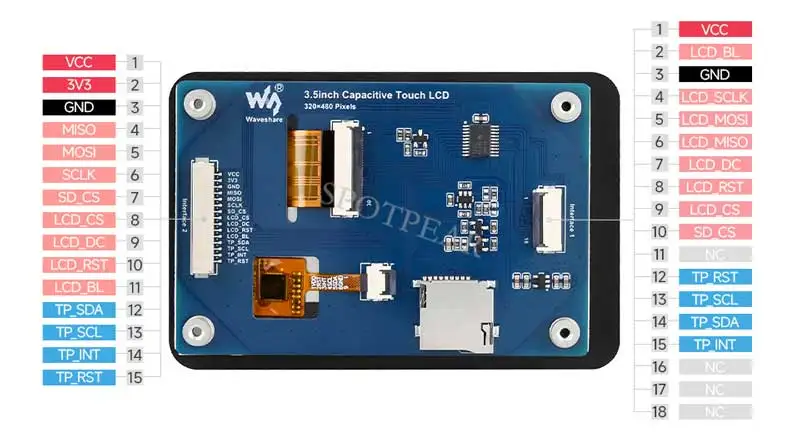

PIN |
DESCRIPTION |
15PIN |
18PIN |
VCC |
Power (3.3V / 5V input) |
1 |
1 |
3V3 |
Power (3.3V input) |
2 |
NC |
GND |
Ground |
3 |
3 |
MISO |
SPI MISO pin |
4 |
6 |
MOSI |
SPI MOSI pin |
5 |
5 |
SCLK |
SPI CLK pin |
6 |
4 |
SD_CS |
TF card chip selection, low active |
7 |
10 |
LCD_CS |
LCD chip selection, low active |
8 |
9 |
LCD_DC |
LCD data/command selection (high for data, low for command) |
9 |
7 |
LCD_RST |
LCD reset pin, low active |
10 |
8 |
LCD_BL |
LCD backlight pin |
11 |
2 |
TP_SDA |
Touch panel data pin |
12 |
14 |
TP_SCL |
Touch panel clock pin |
13 |
13 |
TP_INT |
Touch panel interrupt pin |
14 |
15 |
TP_RST |
Touch panel reset pin, low active |
15 |
12 |
Hardware Connection
Connecting with Raspberry Pi 5
Connecting with ESP32-S3
* for reference only, the Raspberry Pi 5 and ESP32-S3 driver board are NOT included, please check the Package Content for the detailed part list.

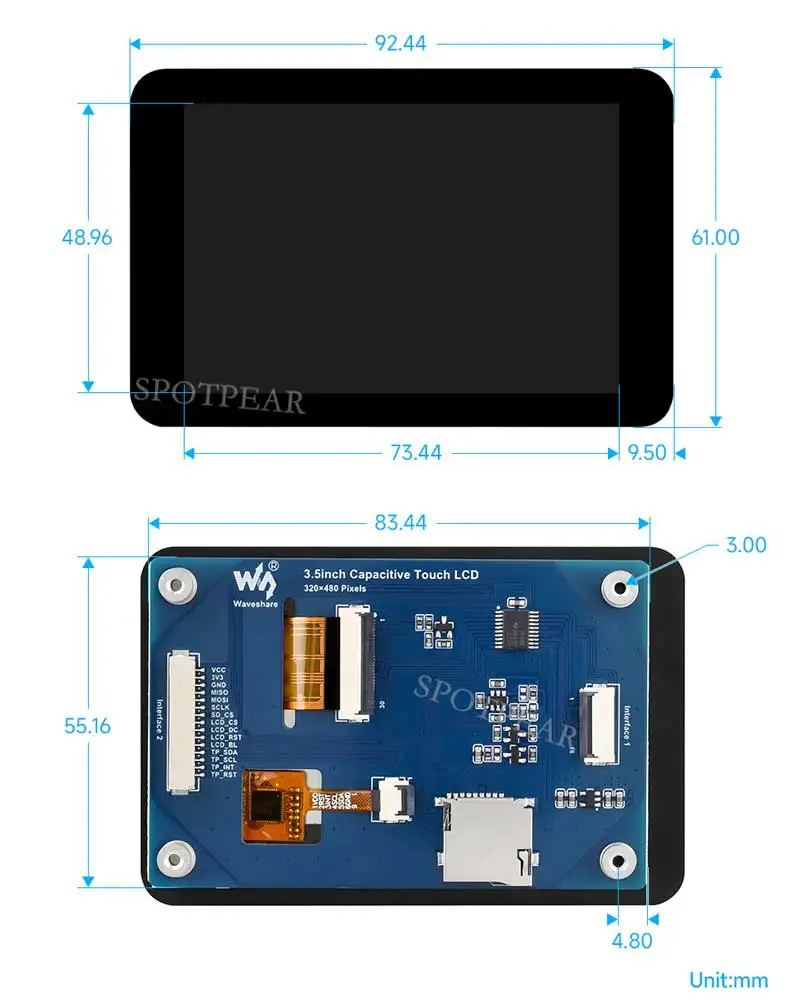

Outline Dimensions
[] 3.5inch Capacitive Touch LCD
